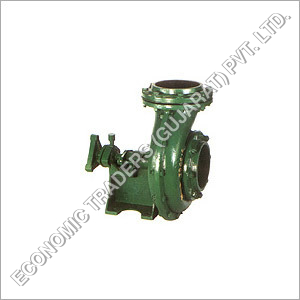

Centrifugal Water Pumps (Type TDCS)

Centrifugal Water Pumps  (Type TDCS)
Centrifugal Water Pumps (Type TDCS)
Product Code : 09
Product Description

Centrifugal Water Pumps (Type TDCS)

With the support of our highly experienced and skilled workforce, we are renowned as one of the well equipped manufacturers, suppliers and exporters of Centrifugal Water Pumps (Type TDCS). These are manufactured by employing high quality cast iron and steel procured from trusted vendors of the industry. Our wide range of water pumps is known for its solid construction, easy operation and vibration proof functioning. Manufactured as per the industrial norms and standards, these Centrifugal Water Pumps (Type TDCS) are available at very cost effective prices.



 Specifications

Design Features

  • The pump is made for coupling with electric motor, diesel engine with the help of belt.

  • The direction of rotation is clockwise viewing from pulley end.

  • The pump is solid in construction, vibration proof and easy in handling.

  • The pump is supported with robust ball bearings.

  • Casing is made of high quality close grained cast iron with well-designed volute way ensuring smooth flow with gradual changes in velocity and is hydraulically tested before final assembly.

  • Impeller is of single end suction, shrouded type made of special Grey Iron with high finish and impeller is dynamically as well as statically balanced.

  • Shaft is made from high quality steel and accurately ground finished within the manufacturing tolerances, and the size of the shaft is designed for transmitting maximum power without vibrations.

  • Supporting frame is robustly constructed to carry shaft, single as well as double bearings and brass bush.

  • Stuffing box is of liberal depth for accommodating sufficient gland packing. Easy access to stuffing box is an outstanding feature of Supporting Frame, facilitating convenient replacement of Gland packing.

Application

  • Water supply from fountains, lakes, rivers; water transport through the pipelines over long distances

  • Irrigation of the Agricultural Farms.

Technical Data

  • Suction / Discharge Diameter : upto 6 inch

  • Capacity : upto 56 lps

  • Pumping head : upto 22 meter

  • Suction head : Max.6 meter

  • Prime Mover Capacity : upto 5 to 20 hp

  • Revolution Per Minute : 1440 rpm

  • Max. Working Pressure : 3.5 Bar
