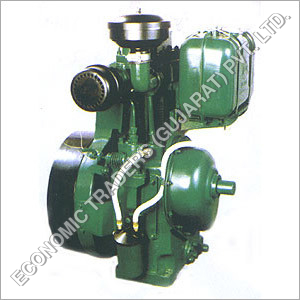

High Speed Diesel Engines ( Single Cylinder or Air Cooled ) 3 Technical Data
|
Engine Type
|
Vertical
|
Vertical
|
Vertical
|
Vertical
|
Vertical
|
|
01. Output - hp / KW
|
3.5/2.2
|
5/3.7
|
6.5/4.8
|
8/5.9
|
10/7.35
|
|
02 RPM
|
1500
|
1500
|
1500
|
1500
|
1500
|
|
03. Bore
|
80 mm
|
80 mm
|
85 mm
|
92 mm
|
102 mm
|
|
04. Stroke
|
76 mm
|
110 mm
|
110 mm
|
110 mm
|
110 mm
|
|
05.Cubic Capacity (SWEPT VOL.)
|
382 cc
|
553 cc
|
625 cc
|
780 cc
|
798 cc
|
|
06. Fuel Tank Capacity
|
3.5 litres
|
9 litres
|
9 litres
|
9 litres
|
11 litres
|
|
07. Fuel Injection Equip.
|
Mico
|
Mico
|
Mico
|
Mico
|
Mico
|
|
08. Fuel Consumption
|
251 g / kWh
|
251 g / kWh
|
251 g / kWh
|
251 g / kWh
|
251 g / kWh
|
|
09. Lubrication Oil
|
Yentrol-42
|
Yentrol-42
|
Yentrol-42
|
Yentrol-42
|
Yentrol-42
|
|
10. Lub. Oil Consumption / HR / hp
|
1.6 cc
|
1.6 cc
|
1.6 cc
|
1.6 cc
|
1.6 cc
|
|
11. Net Weight
|
155 kg
|
155 kg
|
155 kg
|
170kg
|
180 kg
|
|
12. Taper Roller Bearing
|
501349/10
|
32211
|
32211
|
32211
|
32211
|
|
13. Dimension [mm)
|
600x780x710
|
690x580x890
|
690x580x890
|
690x580x890
|
690x580x890
|
|
15. Standard Accessories
|
Fuel Tank, Exhaust Silencer, Air Cleaner, Starting Handle, Spanner Set & Screw Driver.
|
|
