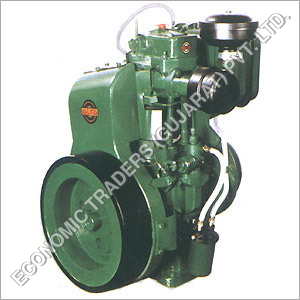

High Speed Diesel Engines ( Single Cylinder )

High Speed Diesel Engines ( Single Cylinder )
High Speed Diesel Engines ( Single Cylinder )
Product Code : 17
Product Description

High Speed Diesel Engines (Single Cylinder)

Blessed and supported by the team of adroit professionals, our company is considered as one of the eminent manufacturers and exporters of High Speed Diesel Engines (Single Cylinder). These are designed and manufactured using high grade raw materials procured from reliable sources of the industry in compliance with the international standards. Available at industry leading prices, these find application in many industries. Due to their rugged design, resistance to corrosion and long service life, these High Speed Diesel Engines (Single Cylinder) are in a high demand.

Specifications

Technical Data

Engine Type

Vertical

Vertical

Vertical

Vertical

Vertical

01. Output - hp / KW

3.5/2.2

5/3.7

6.5/4.8

8/5.9

10/7.35

02  RPM

1500

1500

1500

1500

1500

03. Bore

80 mm

80 mm

85 mm

92 mm

102 mm

04. Stroke

76 mm

110 mm

110 mm

110 mm

110 mm

05.Cubic Capacity (SWEPT VOL.)

382 cc

553 cc

625 cc

780 cc

798 cc

06. Fuel Tank Capacity

3.5 litres

9 litres

9 litres

9 litres

11 litres

07. Fuel Injection Equip.

Mico

Mico

Mico

Mico

Mico

08. Fuel Consumption

251 g / kWh

251 g / kWh

251 g / kWh

251 g / kWh

251 g / kWh

09. Lubrication Oil

Yentrol-42

Yentrol-42

Yentrol-42

Yentrol-42

Yentrol-42

10. Lub. Oil Consumption / HR / hp

1.6 cc

1.6 cc

1.6 cc

1.6 cc

1.6 cc

11. Net Weight

155 kg

155 kg

155 kg

170kg

180 kg

12. Taper Roller Bearing

501349/10

32211

32211

32211

32211

13. Dimension [mm)

600x780x710

690x580x890

690x580x890

690x580x890

690x580x890

15. Standard Accessories

Fuel Tank, Exhaust Silencer, Air Cleaner, Starting Handle, Spanner Set & Screw Driver.
