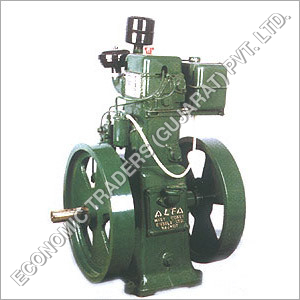

Slow Speed Diesel Engines ( Single Cylinder ) 8p Technical Data
|
Engine Type
|
Vertical
|
Vertical
|
Vertical
|
Vertical
|
Vertical
|
Vertical
|
|
01. Output - hp / KW
|
6/4.4
|
8/5.9
|
9/6.6
|
1O/7.35
|
10/7.35
|
12/8.0
|
|
02 RPM
|
650
|
850
|
950
|
1000
|
1000
|
1000
|
|
03. Bore
|
114.3mm
|
1 14.3 mm
|
114.3 mm
|
120mm
|
120mm
|
127mm
|
|
04. Stroke
|
139.7 mm
|
139.7mm
|
139.7 mm
|
139.7 mm
|
139.7mm
|
130mm
|
|
05. Cubic Capacity (SWEPT VOL.)
|
1432.7 cc
|
1432.7 cc
|
1432.7 cc
|
1579.2 cc
|
1579.2 cc
|
1645.96 cc
|
|
06. Fuel Tank Capacity
|
9 litres
|
9 litres
|
9 litres
|
11 litres
|
11 litres
|
11 litres
|
|
07. Fuel Injection Equip.
|
Mico/Jay
|
Mico/Jay
|
Mico/Jay
|
Mico/Jay
|
Mico/Jay
|
Mico/Jay
|
|
08. Fuel Consumption
|
268 g / kWh
|
268 g / kWh
|
268g/kWh
|
268g/kWh
|
268 g / kWh
|
268g/kWh
|
|
09. Lubrication Oil
|
SAE40
|
SAE40
|
SAE40
|
Yentnd42
|
Yentrol-42
|
Yentrol-42
|
|
10. Lub. Oil Consumption
|
150Hr/Ur.
|
100 Hr / Ltr.
|
90Hr/Ur.
|
80Hr/Ltr.
|
80Hr/Ltr.
|
80Hr/Ltr.
|
|
11. Net Weight
|
302 Kgs.
|
314 Kgs..
|
338 Kgs.
|
338 Kgs.
|
343 Kgs.
|
310 Kgs-
|
|
12. Main Bearing
|
32211
|
32211
|
32211
|
32211
|
32211
|
32211
|
|
13. Pulley Size (mm)
|
300x127x00
|
305x127*30
|
254x127x51
|
254x127x51
|
254x127x51
|
254x127x51
|
|
14. Dimension [cm)
|
72x104x115
|
72x104x115
|
72x104x115
|
72x104x115
|
72x104x115
|
72x104x115
|
|
15. Standard Accessories
|
Fuel Tank, Exhaust Silencer, Screw Driver, Starting Handle, Spanner Set. Oil Can & Air Cleaner.
|
|
